Obeat 1

  • Dual mode technology
  • Compatible with Sport watch /Cycling computer/Fitness equipment and Smart device with Bluetooth 4.0, ANT+; also work with most Bluetooth Smart Fitness Apps.

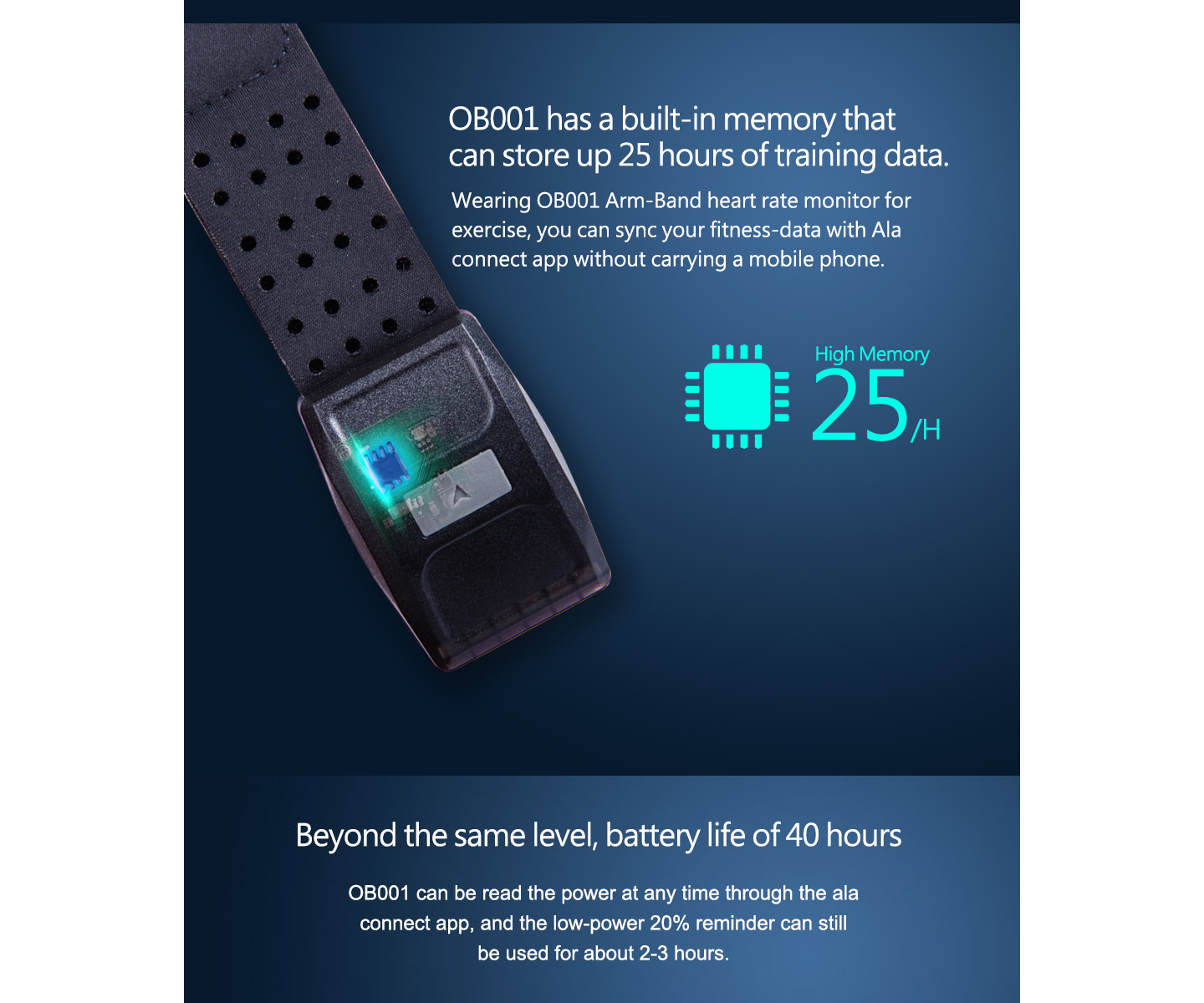

  • Storage function
  • The built-in memory can independently record and store heart rate data andSPM( steps per minutes); no need to bring the smartphone or wear the watch
  • when exercising. After exercising, the user can
  • synchronize the data to Ala Connect through Bluetooth to review the training overview.
  • Lightweight and comfortable
  • The sensor and armband are less than 20 grams; can be worn on the forearm orupper arm.


• Model: OB001

• Dimension: L48×W31.5×D12.5mm

• Armband: L380×W25mm

• Weight: 13 g (armband excluded)

• IP rating: IPX7

• Memory capacity: Up to 25 hours training. (Single recording file up to 13 hours)

• Operating temperature: -10~60°C (-14~140°F)

• Charge temperature: 10~45°C (50~113°F)

• Wireless transmission interface: Bluetooth 4.0, ANT+

• Wireless transmission frequency: 2.402~2.480 GHz

• Battery: rechargeable lithium battery

• Input voltage: 5V

• Run time: 40 consecutive hours (max.)

• In the box: Sensor, Armband, USB charging station, Quick start guide, Warranty
card, Instruction card of GPT.

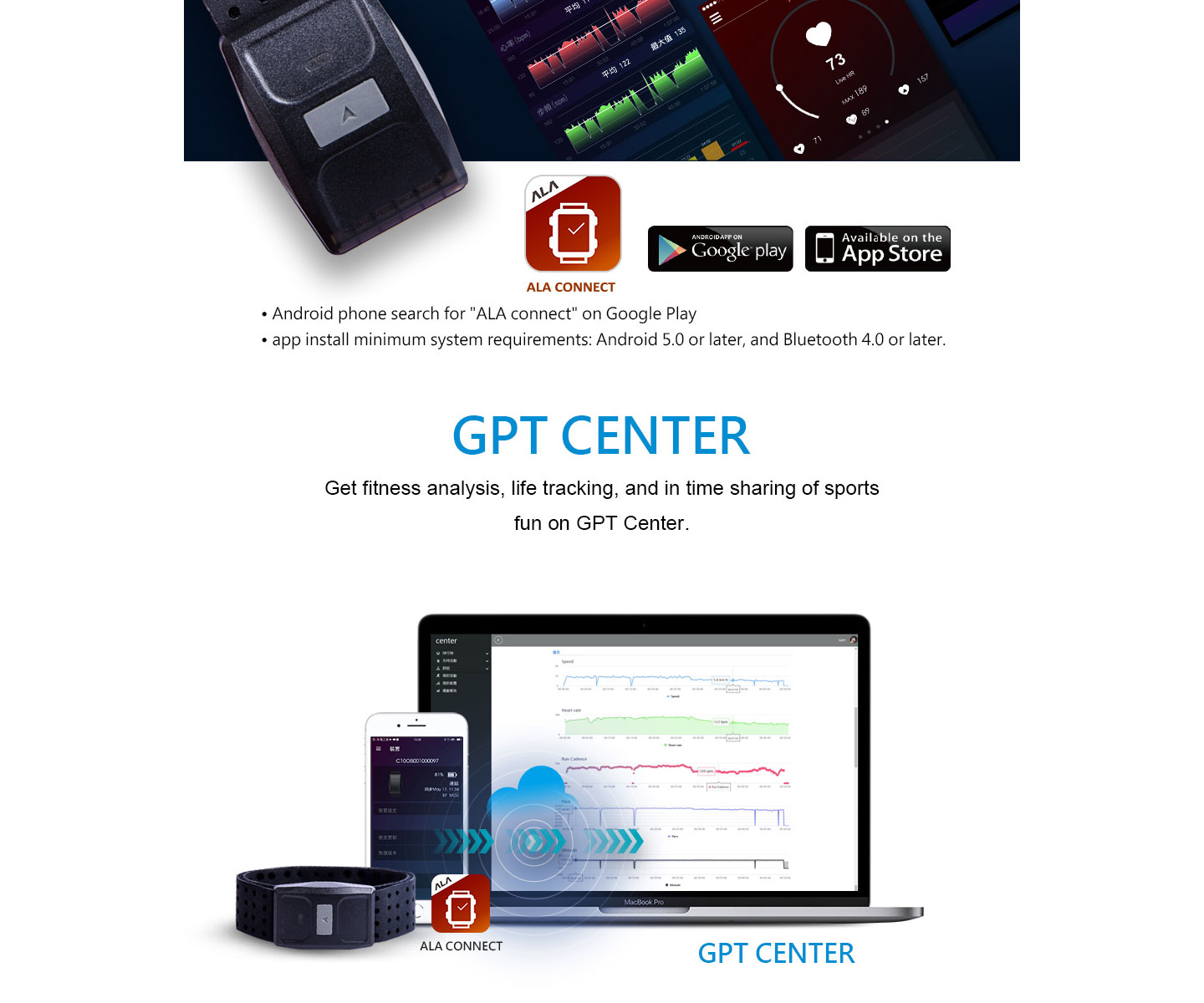

Your daily health records and fitness training application all on ALA CONNECT

ALA Fitness™

Record exercise information and generate exercise reports in real time

ATTACUS-Obeat1-Operation Guide

Basic operation, pairing method and wearing method with connect app
